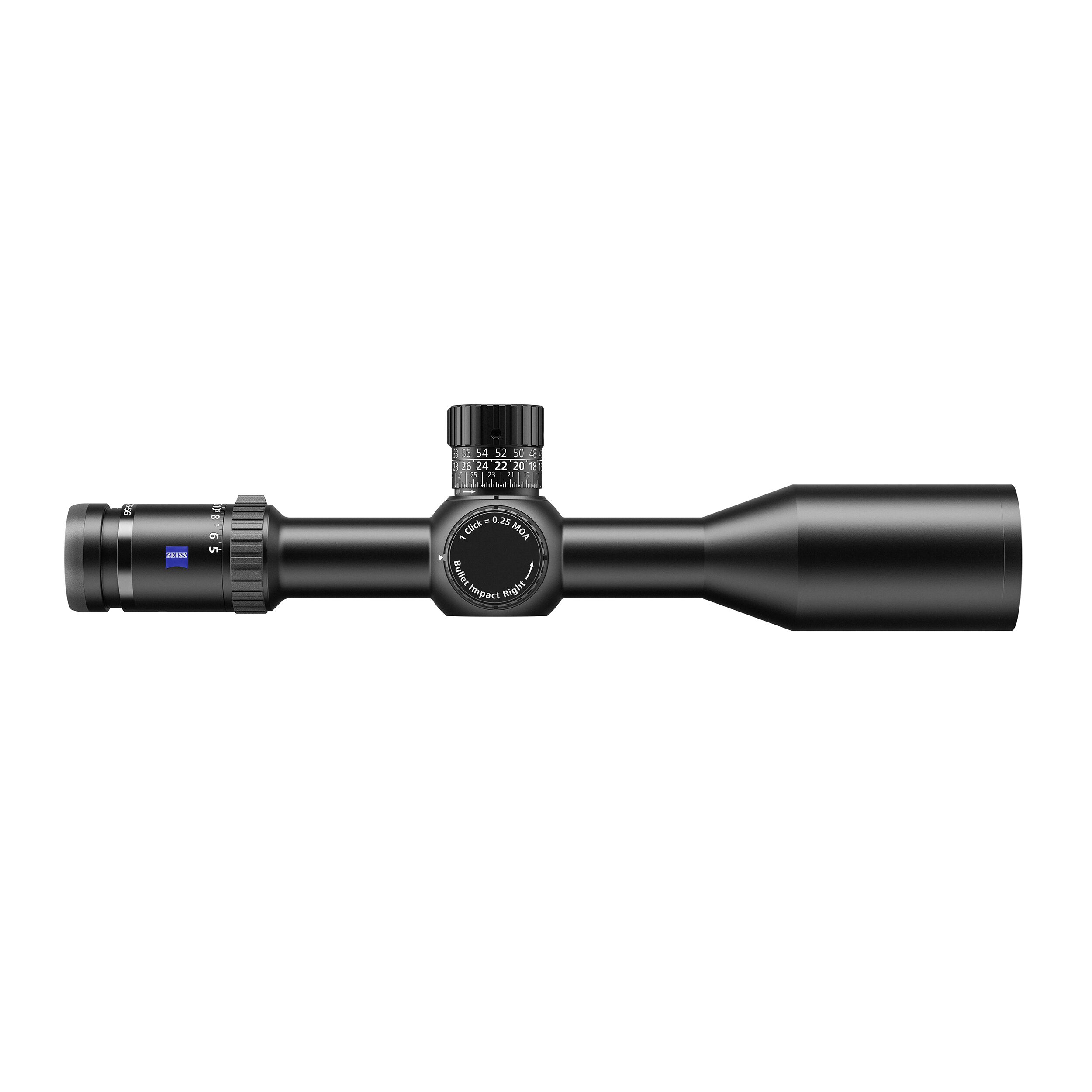

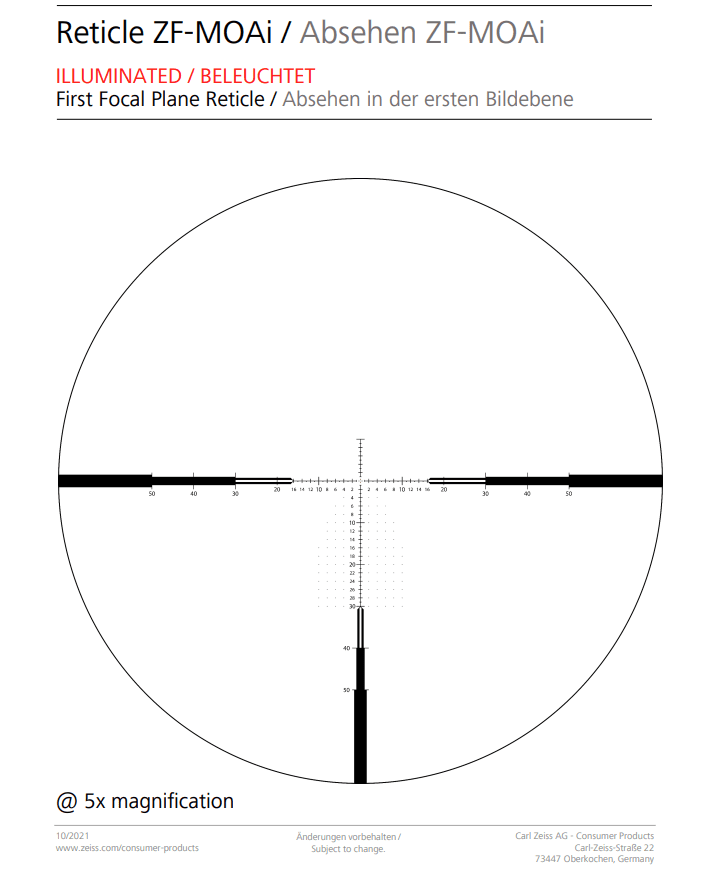

LRP S5 525-56 (MOA) – ZF-MOAi

The Zeiss LRP S5 525-56 is a first focal plane riflescope with a 34 mm main tube, and provides a massive amount of total elevation travel out-of-the-box, which is extremely beneficial for long-range hunting.

The Zeiss LRP S5 525-56 magnification range covers the maximum amount of unique longer-range hunting scenarios. The 25x magnification will allow the hunter to confirm the finest of details at the longest distances before taking the shot. The 56 mm objective assures the hunter excellent image quality and light transmission.

This model is available in both Milliradian and Minute-of-Angle configurations. It’s perfect for specialized hunting applications; and it is an exceptional choice on a variety of long-range rifle platforms that demand a most excellent optic for utmost performance.

With its higher magnification range, the Zeiss LRP S5 525-56 model is the most ideal scope for long-range hunting, target shooting, testing ammunition, and load development.

SPECIFICATIONS:
Magnification: 5 – 25 ×
Effective lens diameter: 56 mm
Light transmission: 90%
Exit pupil diameter: 9.2 – 2.4 mm
Twilight factor: 16.7 – 37.4
Field of view at 100 m (yds): 7.5 – 1.5 m (23 – 5 ft)
Objective viewing angle: 4.3° – 0.8°
Diopter adjustment range: + 2.0 | − 3.0 dpt
Eye relief: 90 mm (3.54 “)
Parallax setting: 25 m – ∞ (27 yds – ∞)
Vertical adjustment range at 100 m: 40,7 MRAD | 140 MOA
Lateral adjustment range at 100 m: 24 MRAD | 60 MOA
Adjustment per click at 100 m: 0,1 MRAD | 0,25 MOA
Centre tube diameter: 34 mm
Eyepiece tube diameter: 46 mm
Objective tube diameter: 62 mm
LotuTec | Nitrogen filled: + | +
Water resistance: 400 mbar
Operating temperature: − 25°C | + 56°C (− 13°F | + 133°F)
Length: 396 mm (15.6 “)
Zeiss LRP S5 525-56 Weight (without inner rail): 1.030 g (36.3 oz)
