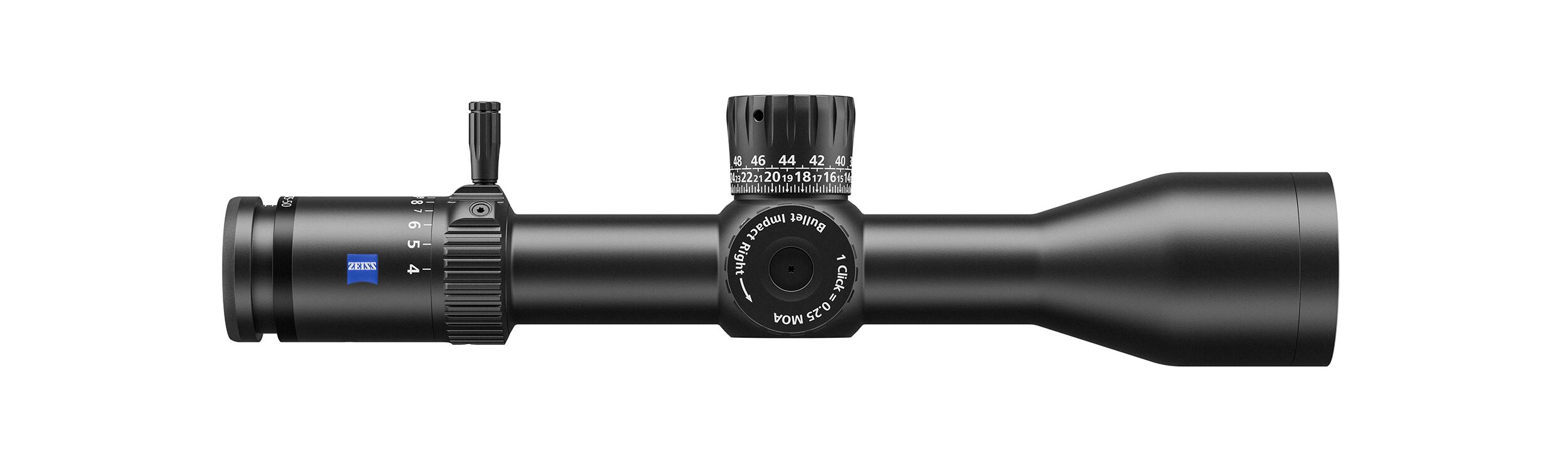

LRP S3 425-50 (MOA) – ZF-MOAi

The ZEISS LRP S3 first focal plane riflescopes provide the best-in-class total elevation travel. In the world of long-range rimfire competition, the little 22 LR cartridge is frequently pushed beyond its intended limits. In turn, the capabilities and performance of the riflescope are tested at the extreme – with a key limiting factor for many scopes being sufficient elevation travel.

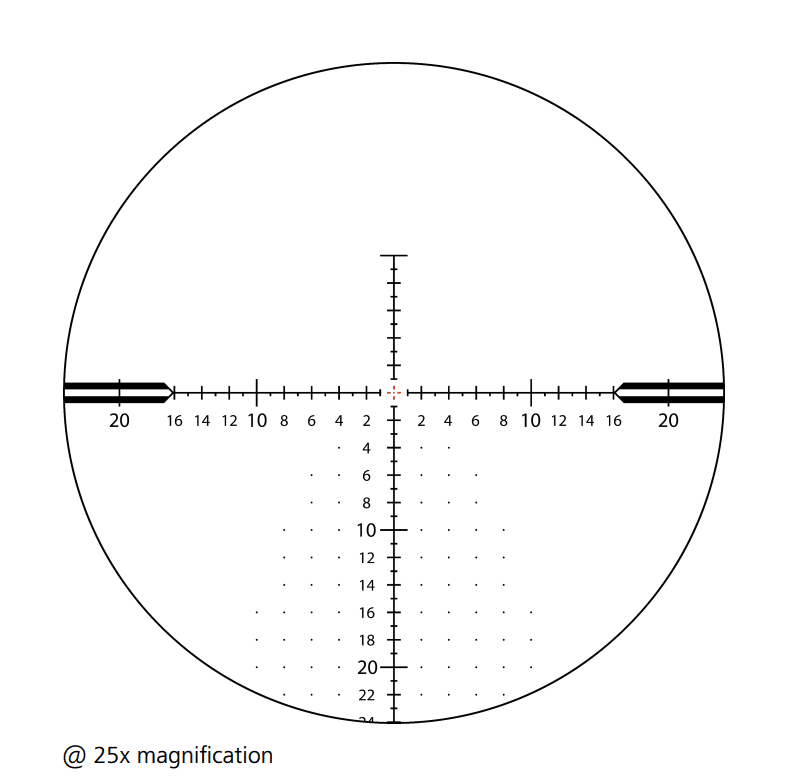

Zeiss LRP S3 425×50 (MOA) ZF-MOAi Reticle offers a large field-of-view making it the perfect targeting optic for medium and long-range targets. Its compact and lightweight 34mm main tube is tested to withstand 1,500 g-force of shock over multiple impact cycles.

SPECIFICATIONS:
Magnification: 4 – 25 ×
Effective lens diameter: 50 mm
Light transmission: 90%
Exit pupil diameter: 7.1 – 2.0 mm
Twilight factor: 11.7 – 35.4
Field of view at 100 m (yds): 9.5 – 1.6 m (28.5 – 4.8 ft)
Objective viewing angle: 5.4° – 0.9°
Diopter adjustment range: + 3.0 | − 3.0 dpt
Eye relief: 80 – 90 mm (3.0 – 3.5 “)
Parallax setting: 15 m – ∞ (16.4 yds – ∞)
Vertical adjustment range at 100 m: 46.5 MRAD | 160 MOA
Lateral adjustment range at 100 m: 17.5 MRAD | 60 MOA
Adjustment per click: 0.1 MRAD | 0.25 MOA
Centre tube diameter: 34 mm
Eyepiece tube diameter: 45 mm
Objective tube diameter: 60 mm
LotuTec | Nitrogen filled: + | +
Water resistance: 400 mbar
Operating temperature: − 25°C | + 56°C (− 13°F | + 133°F)
Length: 340 mm (13.4 “)
Weight (without inner rail): 1040 g (36.7 oz)
MPN: 522665-9917-090
