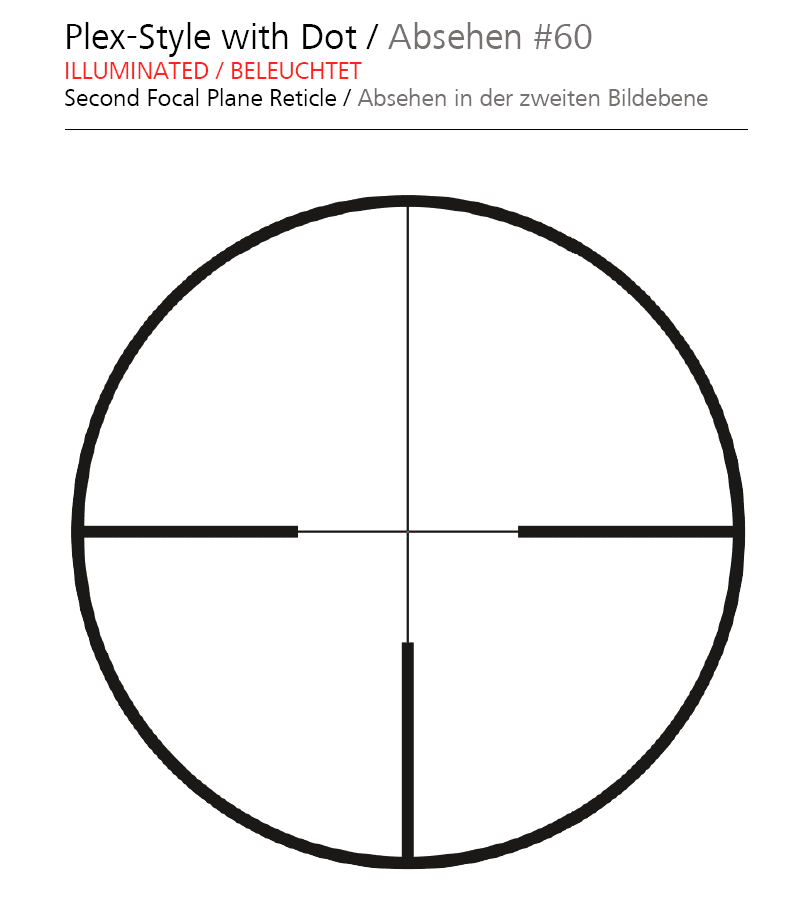

V8 2.8-20×56 NA .25 MOA Plex Reticle (#60) 522133-9960-040

Description

German design, engineering, manufacturing, and ultimate craftsmanship comes to life in these sophisticated V8 scopes with a highly advantageous 8x zoom ratio. The distinctly innovative optics utilize exotic glass types, from SCHOTT glass, consisting of multiple FL (fluoride) and HT (high-transmission) lens elements. The optical system yields an impressively bright image, with a guaranteed light transmission value of 92%. An immediate advantage of these designs is the extra-large eye box that allows for faster target acquisition.

The V8 2.8-20×56 NA opens up more hunting opportunities in lower light conditions and at longer distances. Enjoy vivid and highly contrasting images, with exceptional resolution. The scope represents a perfect balance between high magnification and low light performance.

TECH SPECS:

Magnification: 2.8 – 20 ×
Effective lens diameter: 27.5 – 56 mm
Light transmission:92%
Exit pupil diameter:9.9 – 2.8 mm
Twilight factor:7.9 – 33
Field of view at 100 m (yds):15.5 – 2.1 m (46 – 6 ft)
Objective viewing angle:8.8° – 1.2°
Diopter adjustment range:− 3.5 | + 2 dpt
Eye relief:92 mm (3.6 “)
Parallax setting:50 m – ∞ (54 yds – ∞)
Vertical adjustment range at 100 m:210 cm
Lateral adjustment range at 100 m:135 cm
Adjustment per click at 100 m:0.25 MOA
Centre tube diameter:30 mm
Eyepiece tube diameter:46 mm
Objective tube diameter:62 mm
LotuTec | Nitrogen filled: + | +
Water resistance:400 mbar
Operating temperature:− 25°C | + 50°C (− 13°F | + 122°F)
Length:350 mm (13.8 “)
Weight (without inner rail):795 g (28.0 oz)
Weight (with inner rail):830 g (29.3 oz)
SKU: 522133-9960-040
