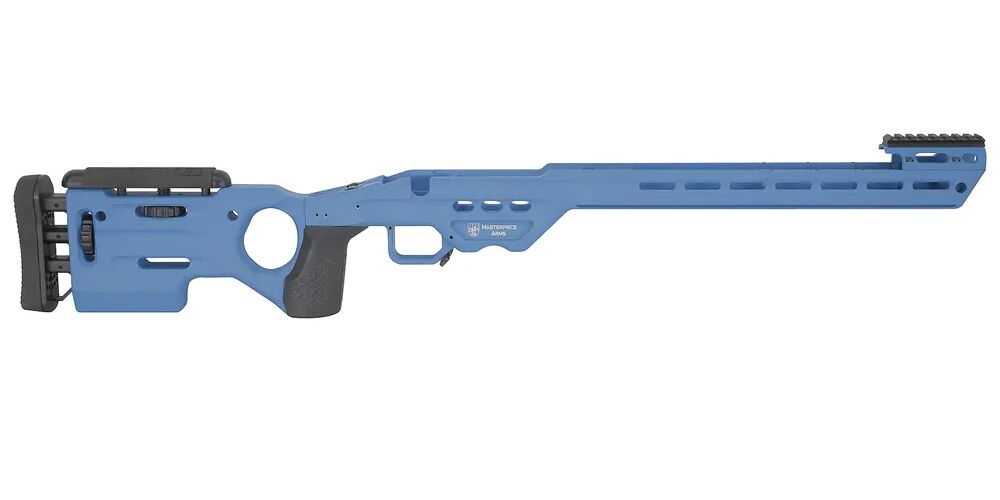

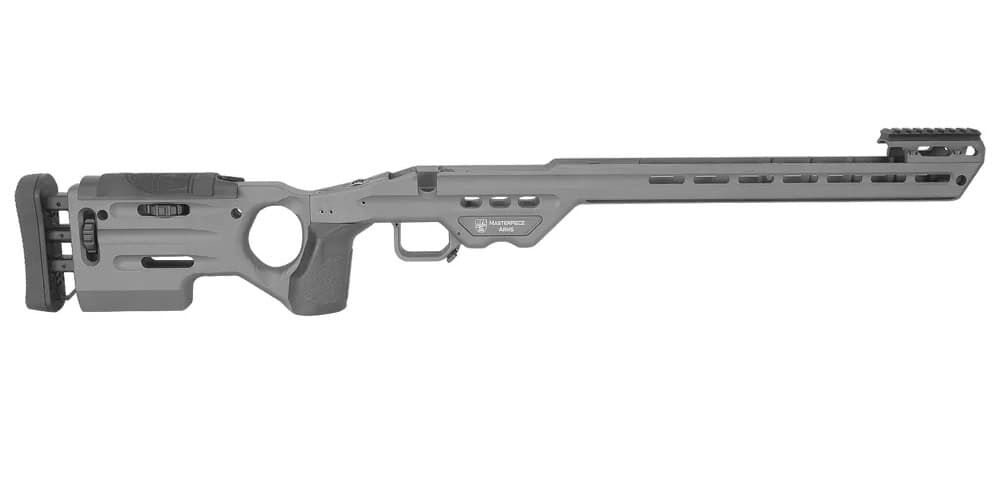

Matrix Chassis Remington SA RH

The Matrix Chassis is the most revolutionary chassis ever produced. With the multitude of configurations in grips, thumb rests and trigger finger supports, the primary interface between the shooter and the rifle (the grip) has over 100 different options. (Please refer to the photos above to see our data on shooter preference on the grips, thumb rests, and trigger finger supports). The location of the shooters hand – closer to the bore of the rifle – provides even more variety on how the shooter can set up the chassis.

FEATURES:

Here are some of the key features that make the Matrix revolutionary:

• 6 grip options (3 Swept and 3 Vertical)
• 3 thumb rest options
• 4 trigger finger support options
• M-Lok slots along the sides of the chassis fore-end
• Barricade Stop holes on the bottom of the fore-end
• Additional 2″ of length to the fore-end (from our BA/Comp Chassis)
• Enhanced buttstock design with butt hook
• Standard or Enhanced Night Vision Bridge
• Machined from 6061 aluminum
• MPA RAT System – Rapid Adjustment Technology – 1.5″ Acra Rail Built into the chassis
• V-Bedding system
• MPA buttstock with adjustable cheek riser and length of pull
• 2 of the 5 Different Grip Options (Swept 2 (Small), Swept 3 (Medium), Swept 4 (Large) Vertical 1 (Small), Vertical 2 (Medium), Vertical 3 (Large). See photos for comparison of grip types. Vertical 2 & Swept 3 are most popular)
• All 3 of the thumb rests
•  All 4 of the trigger finger supports
• Additional Grips, Thumb Rests and Trigger Finger Supports can be purchased separately
• Front night vision bridge available in the following configurations:
  • Option 1 = Standard night vision bridge
  • Option 2 = Enhanced night vision bridge with enhanced rail
• Multiple QD sling swivel locations
• M-Lok Slots on Sides of Fore-end
• Durable Cerakote finish in a variety of Colors
• Adjustable length of pull 12.75″ to 14″ (can be reduced to 12.5″ upon request. Additional fee may apply)
• Recoil pad is adjustable for height and cant
• Adjustable cheek riser
• Inclinometer leveling system
• Built in Bag Rider with Butthook
• V4 Spigot Mount (Picatinny Rail and Dovetail Plate built in)
• 2 Round Holder
• Compatible with any AICS type magazines (Mag not included)
• 6.4 lbs

SPECIFICATIONS:
Chassis Material: 6061 Aluminum Billet
Chassis Coating: H Series Cerakote
Magazine Compatibility: AICS and AW (Short Action) & AICS (Long Action)
Weight: 6.15 lbs
Fore end Weight: 3.35 lbs
Buttstock Weight: 2.85 lbs
Fore end Width: 1.700″
Overall Length: 36.6″
Fore end Length: 14.0″
Max Barrel Diameter: 1.250″ (Barrel Channel is actually 1.300″)
