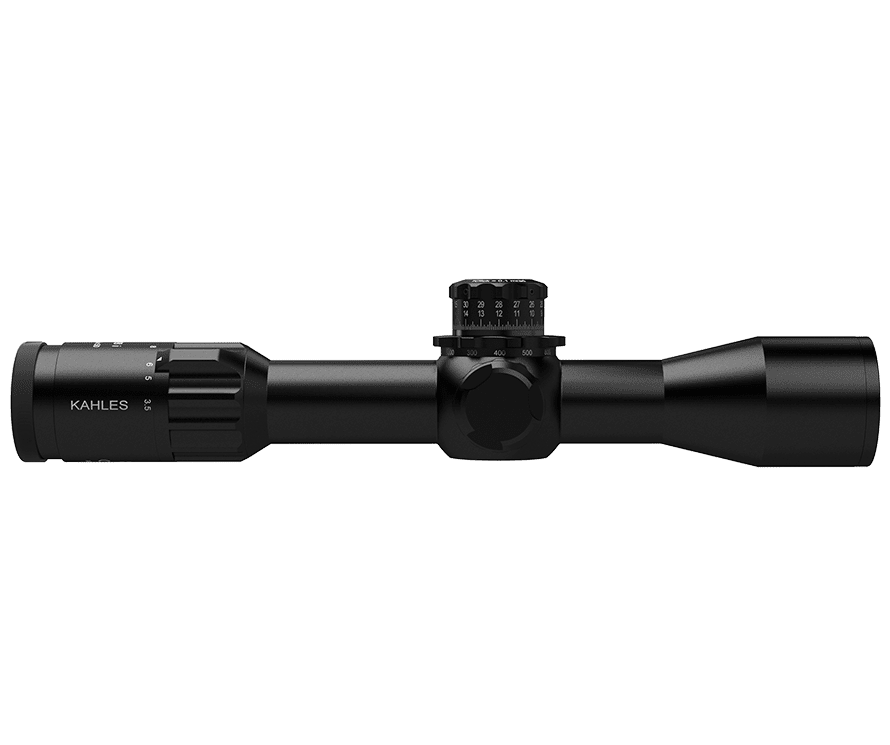

Kahles K328i 3-28x50i CCW (LSW) MOAK 10702

Description

The groundbreaking Kahles K328i 3-28x50i CCW (LSW) MOAK 10702 sets new performance standards with a pioneering new-generation optical design. It offers a 40 % wider field of view*, an exceptionally comfortable eyebox and 8x zoom with perfect optical performance across the entire adjustment range.

NOTE

LSW  (Left Side Windage) is ideal for right handed shooters
RSW (Right Side Windage) is ideal for left handed shooters

CW – Elevation and windage are working clockwise (=сw)
CCW – Elevation and windage are working counter-clockwise (= ccw)

FEATURES:

• Revolutionary optical design with a 40 % wider field of view* and an exceptional eyebox
• 8x zoom with perfect optical performance across the entire adjustment range
• Windage adjustment on the left or right with TWIST GUARD rotation protection
• Patented parallax adjustment integrated in the elevation turret (20 m to ∞)
• Absolutely reliable repeat accuracy and clearly defined clicks
• Precise illuminated reticles in 1st focal plane

SPECIFICATIONS:

Magnification: 3,5 – 28
Eye relief: 3.62 in
Field of view: 42.9 – 5.4 ft/100 yds
Diopter compensation: +2 / -3 dpt
Twilight factor (DIN 58388): 13,2 – 37,4
Impact correction per click:  ¼ MOA
Adjustment range (E/W): 122.4 / 46.8 in/100 yds | 34.0 / 13.0 MILS | 114.7 / 43.9 MOA
Parallax adjustment: 20 m till ∞
Tube diameter: 1,41 in
Length: 14.2 in
Weight: 36.7 oz
Focal plane: 1.
Illuminated: Yes
Warranty: 10 (2 electronics)
MPN: 10701
