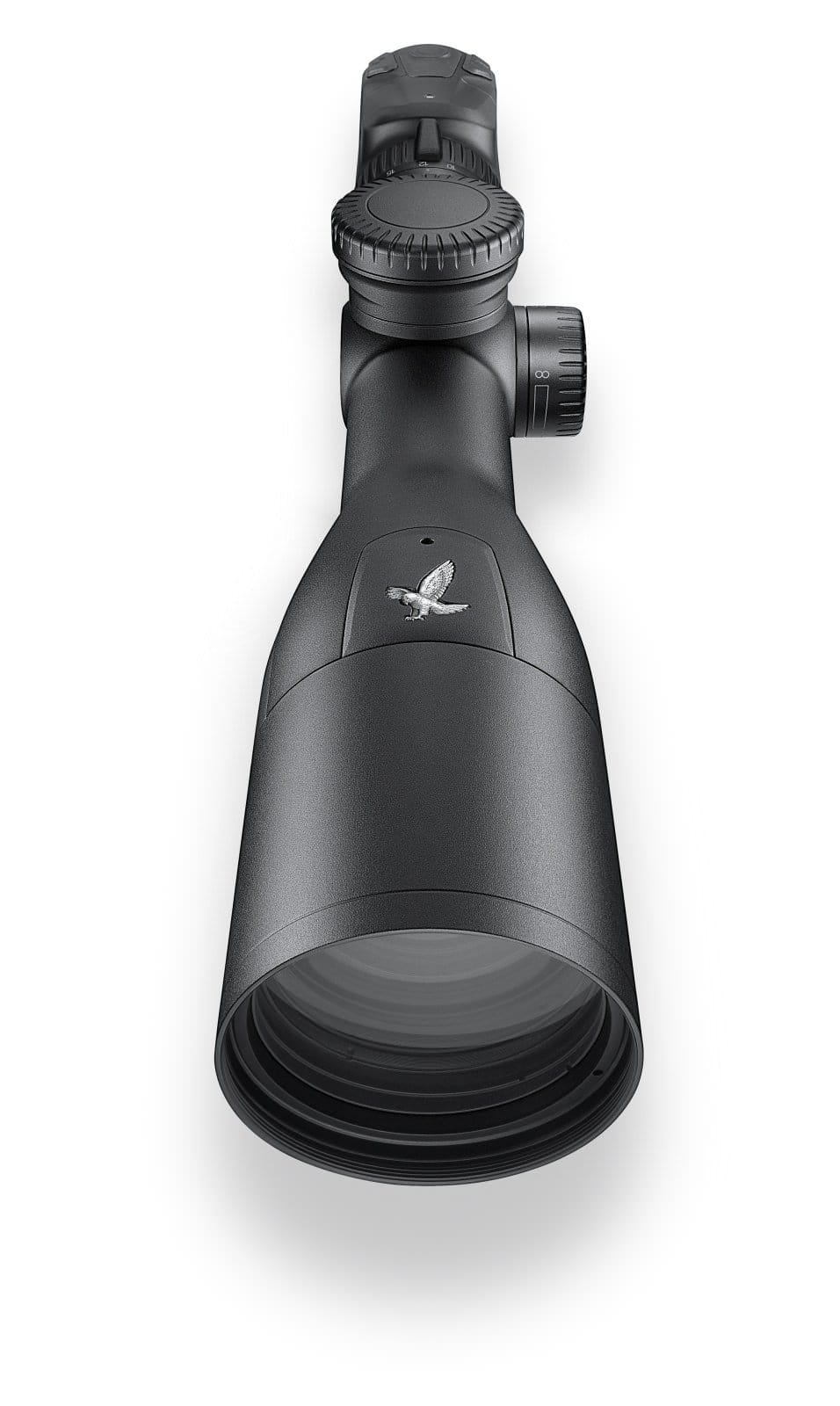

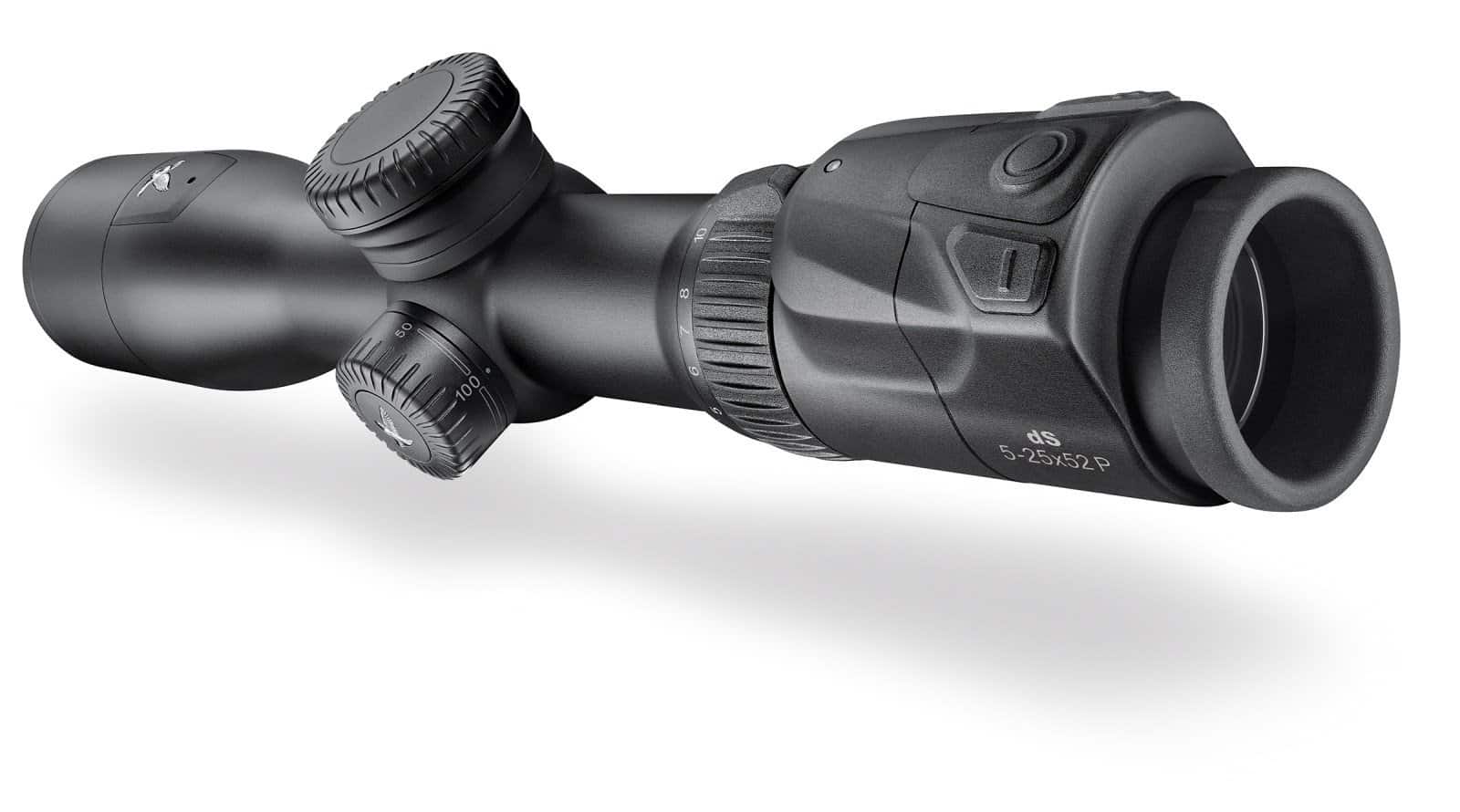

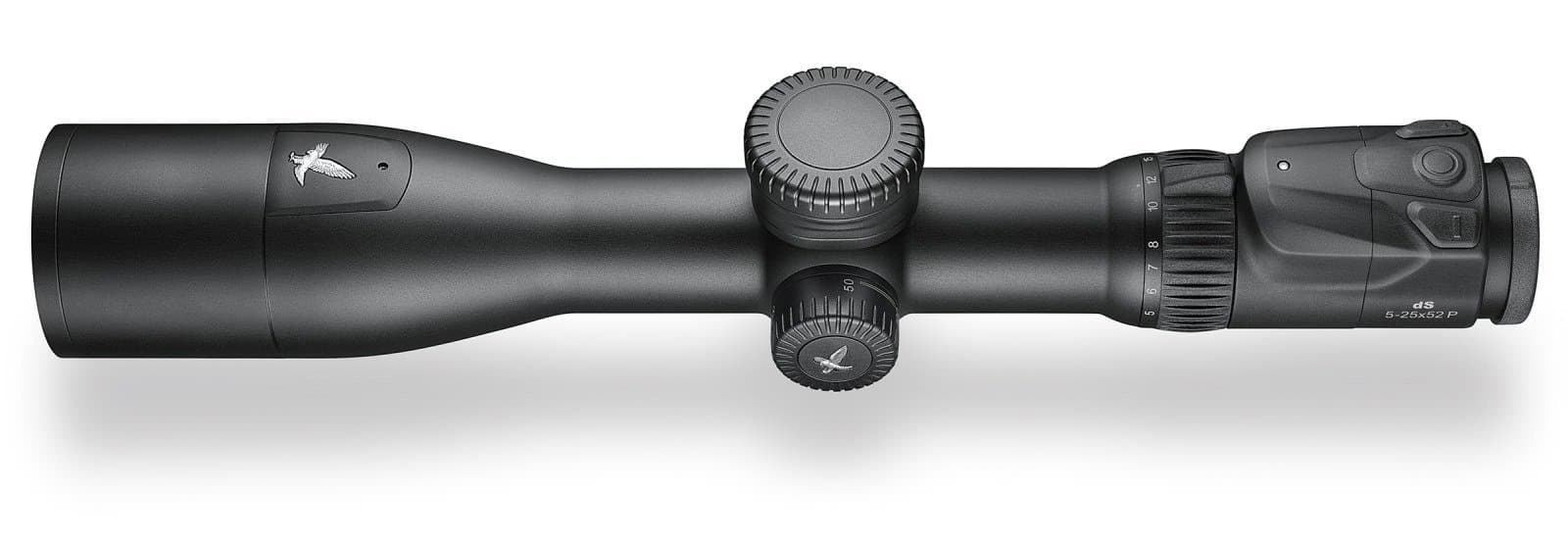

dS 5-25×52 P Digital Rifle Scope

The Swarovski dS 5-25×52 P riflescope is their latest and greatest creation for 2019. Focusing on the core aspects of hunting has never been easier with their newly developed “smart” rifle scope. Utilize real time info projected into your field of view and automatically display the correct aiming point.? Start smart with the Swarovski dS and take your hunt to the next level of innovation.

The Swarovski dS represents an entirely new generation of rifle scopes, giving you all the support you need hunting to ensure optimal accuracy and precision when you take that shot. The smart technology in the Swarovski dS includes a high-resolution HUD (head-up display) projecting the essential data needed for your successful hunt.

The Swarovski dS displays necessary information in the field of view in real time with no distraction so you can focus on your shot. The dS automatically displays the correct aiming point ensuring accuracy. The aiming point factors in all the essential metrics including angle, distance, temperature, and air pressure. Manual adjustment isn’t needed with the dS. The aiming point is calculated using the individual ballistic data from the firearm-ammunition combination. This data is entered into the dS Configurator app which calculates the ballistic curve and transfers it immediately to the dS riflescope via Bluetooth connection.

DS CONFIGURATOR

The all new Swarovski dS 5-25×52 rifle scope connects to your smart device using the dS Configurator app on your iOS (iPhone / iPad) or Android device via Bluetooth to amplify it’s amazing optical performance.? Utilizing the latest long-range and technical optical innovations, combined with your own hunting experience, makes total focus in even the toughest conditions possible.

Elevate your hunting game by configuring the following parameters in the app:

– Personal Ballistic Data
– Thickness of Windage Marks
– Size of Aiming Points
– Duration of Aiming Point and Distance Display
– Wind Speed for Wind Aiming Points (2 default values to choose from)
– Display of Impact Energy as an option in joules
– System of Units (Metric/Imperial)

PERSONAL BALLISTIC DATA

Manual adjustments are a thing of the past with the new Swarovski dS scope. The aiming point is calculated automatically when your sighting in from your personal ballistic data for your firearm and ammunition combination. Your personal data is input via the dS Configurator on your smartphone or tablet and the resulting calculated ballistic curve is sent directly to the dS scope over Bluetooth.

PERSONAL SETTINGS

All of the following settings can be modified to your requirements and personal preference in the dS Configurator: the display duration (40, 60, or 80 seconds), meters or yards, the crosswind setting for the windage marks between 3/6 m/s (5/10 mph) or 5/10 m/s (10/20 mph) always from 90?, and the point and stroke width displayed as small, medium, or large.

AUTOMATIC HOLDING POINT

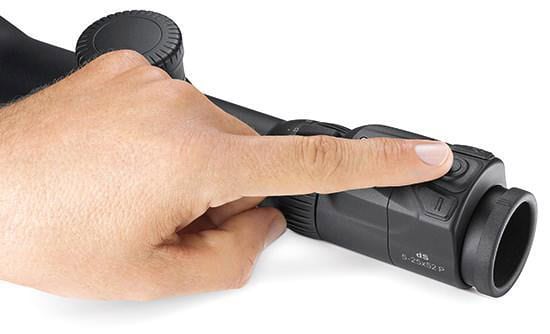

The dS displaying the correct aiming point automatically and immediately is a massive benefit for any hunter . With the press of a button, the Swarovski dS measures the exact distance, factoring in the magnification setting, angle, temperature, and air pressure. Your?ammunition and firearm combination’s personal ballistic data set when sighting in are also used when calculating the aiming point. The windage mark intervals are determined by the measured distance, the set wind speeds, and your ballistic data. Manual adjustments aren’t needed with the dS rifle scope.

Distance information, wind speed, knock-down power, and more: the high-resolution HUD precisely equips you with all the hunting data needed in real time for a successful hunt.

SPECIFICATIONS

Reticle: 4A-I
Scope Weight: 38.4 oz (1090 g)
Scope Length: 15.87 in (403 mm)
Central Tube Diameter: 40 mm
Magnification Range: 5-25x
Focal Plane: Second
Effective Objective Diameter: 48-52 mm
Exit Pupil Diameter: 9.6-2.1 mm
Eye Relief: 95mm
Field of View: 21.9-4.5 ft @ 100 yds (7.3-1.5 m @ 100 m)
FOV Degrees: 4.2-0.84
FOV Apparent Degrees: 21.5
Dioptric Compensation (dpt): -3 to +2
Light Transmission: 83%
Optical Coatings: SWAROCLEAN, SWARODUR, SWAROTOP
Twilight Factor acc. to ISO 14132-1: 14.1-36.0
Turret Style: Capped
Turret Click Value: .250 MOA
Impact Point Corr. per Click (in/100 yds / mm/100 m): 0.25 in (7 mm)
Max. Elevation / Windage Adjustment Range (in/100 yds / m/100 m): 43/25 (1.2/0.7)
Parallax Correction: 55-? yds (50-? m)
Objective Filter Thread: M 63×0.75
Illuminated Reticle: Yes
Laser Type: Class 1 EN/FDA
Scope Finish: Matte Black
Model: dS 5-25×52 P (4A-I)
MPN: 71000

ILLUMINATION SPECIFICATIONS

Brightness Levels: 64
Operating Time: 500x
Display: LCoS monochrome
Measurement Range: 33-1500 yds (30-1375 m)
Measurement Precision: ?1 yd (?1 m)
Measurement Time: ?0.7 seconds
Measurement Units: Yards / Meters
Angle Measurement (degrees): ?60?
Max. Aiming Point Correction: 1120 yds (1024 m)
Display Duration: 40/60/80 seconds
Battery Warning (at 73 ?F / 23 ?C): ca. 100x
Display Switch-Off Warning: 10 seconds
Program (App): dS Configurator
Operating System: iOS 8.1+ / Android 4.4+
Interface: Bluetooth
Bluetooth Range: 2 m

ENVIRONMENTAL SPECIFICATIONS

Weather Resistance: Waterproof and Fogproof
Functional Temperature: +14 ?F to +131 ?F (-10 ?C / +55 ?C)
Storage Temperature: -22 ?F to +158 ?F (-30 ?C / +70 ?C)
Submersion Tightness: 0.4 bar; 13 ft / 4 m water depth (inert gas filling)

DOWNLOADS & LINKS

Android App (dS Configurator): Download
iOS App (dS Configurator): Download
dS Configurator Overview: Click Here
Subtension Dimension Program: Click Here

Instruction Manual: Download
Technical Data: Download
Alternate Manual: Download

Swarovski dS Warranty: Download

WARRANTY

In addition to ergonomic design and innovative technology, Swarovski Optik products are also distinguished by unmatched quality. Swarovski checks every production step and every individual product for 100% quality prior to delivery. Therefore Swarovski is able to offer an extensive warranty. Their repair and service department will be happy to help you at all times if you have any further questions about the warranty on Swarovski Optik products. We are an authorized United States Swarovski Optik dealer here at 1 Shot Gear.
